About This Product

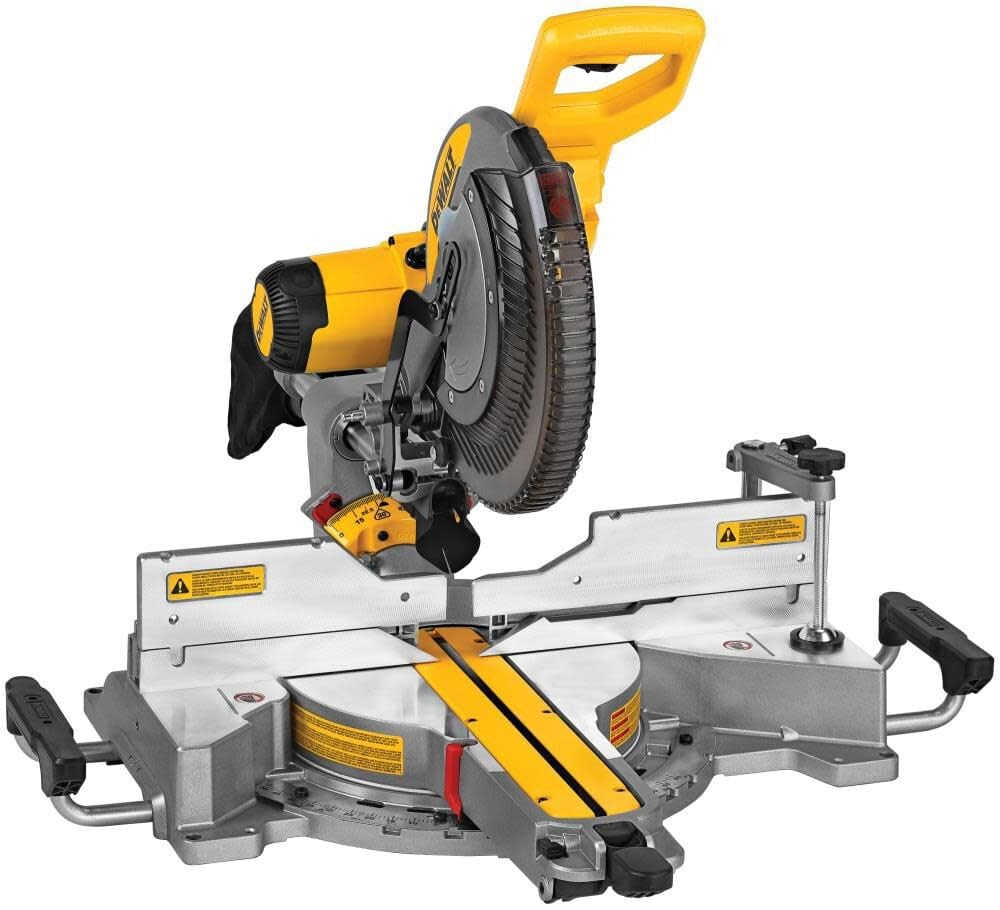

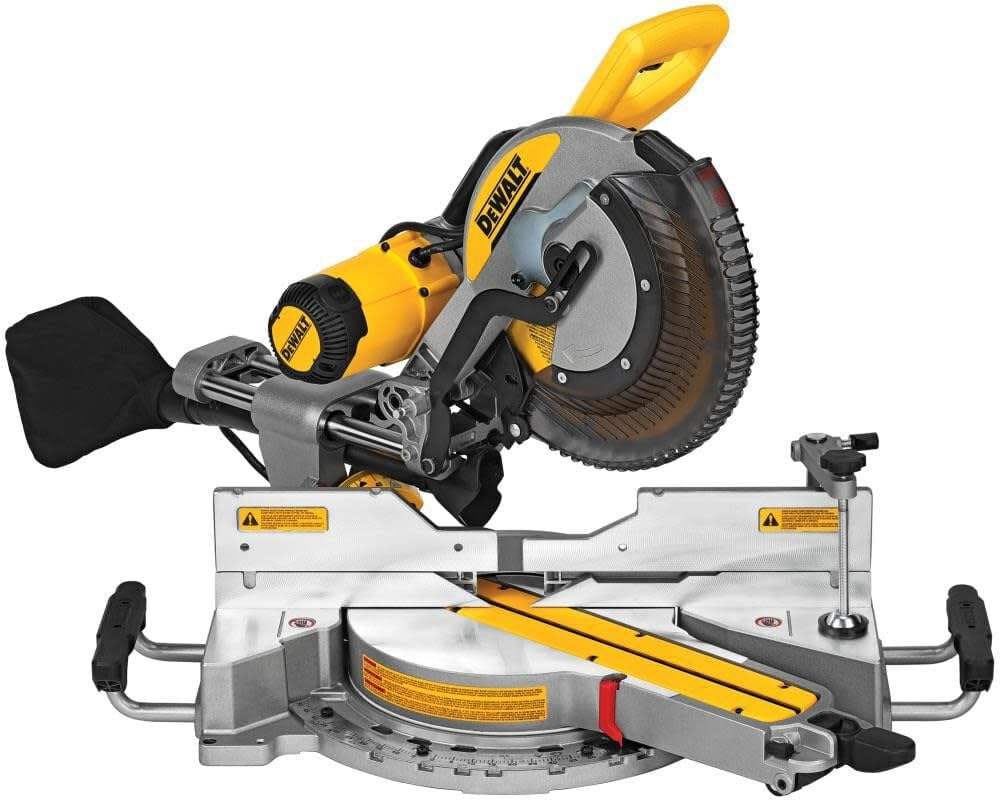

The 12 in. Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2 x 14 dimensional lumber at 90. increased miter capacity of 60. (R) and 50. (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.
PRODUCT WARRANTY
POWERFUL 15 AMP, 3,800 RPM MOTOR
SUPER-EFFICIENT DUST COLLECTION SYSTEM

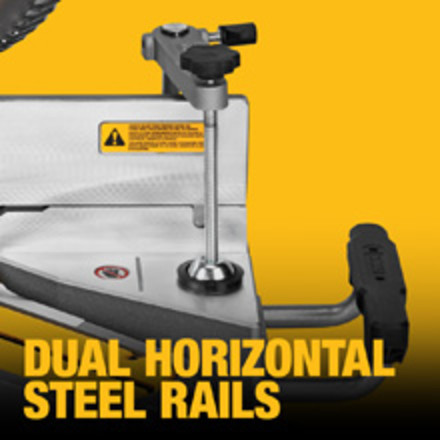

DUAL HORIZONTAL STEEL RAILS

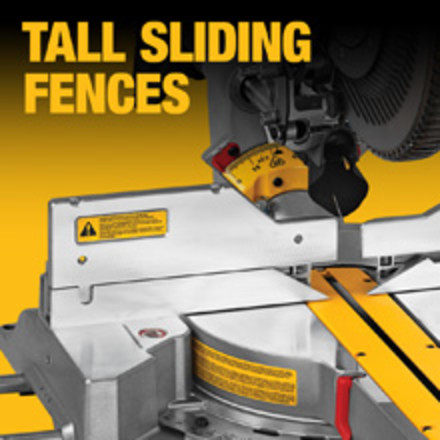

TALL SLIDING FENCES
GUARANTEED TOUGH
Highlights

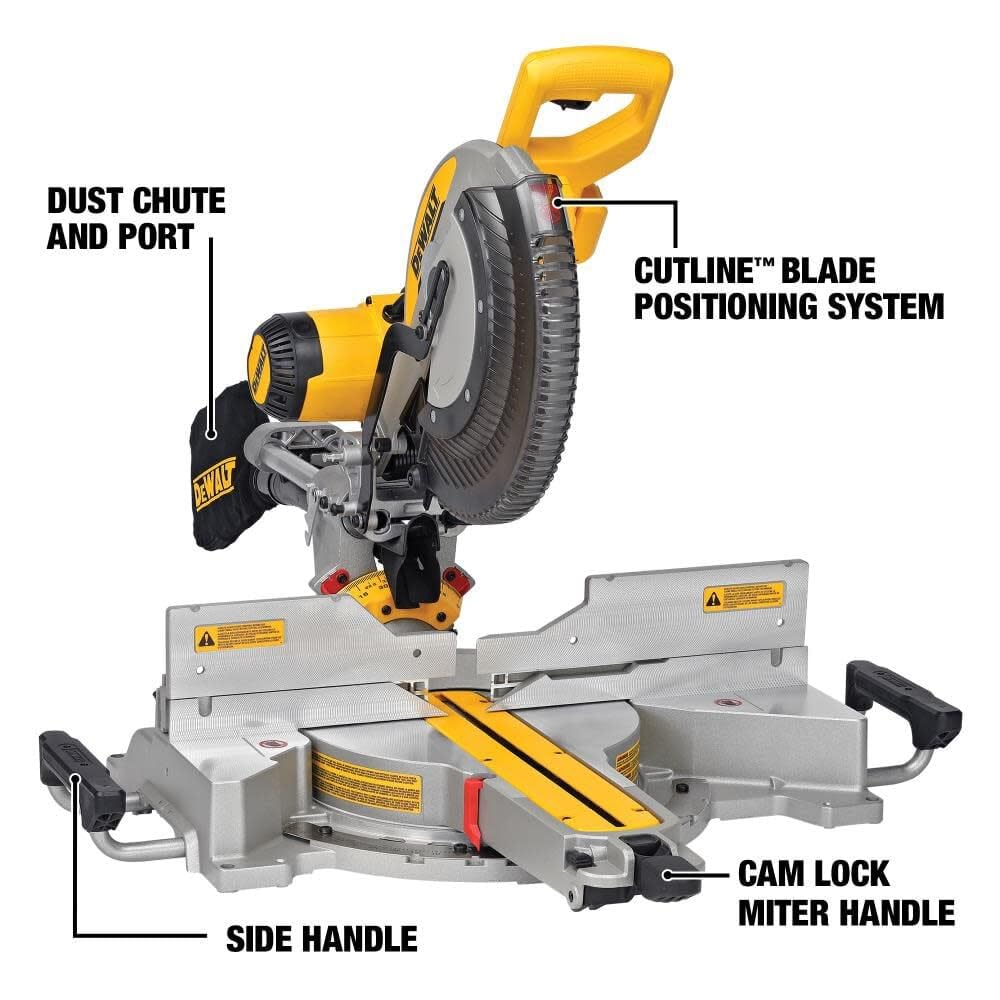

- Integrated cutline blade positioning system provides adjustment free cut line indication for better accuracy and visibility
- Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
- Super-efficient dust collection system captures over 75% of dust generated
- Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
- Exclusive back fence design cuts up to 2 x 14 dimensional lumber at 90° and 2 x 10 at 45°
- Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
- Miters 60° to the right and 50° to the left providing increased capacity

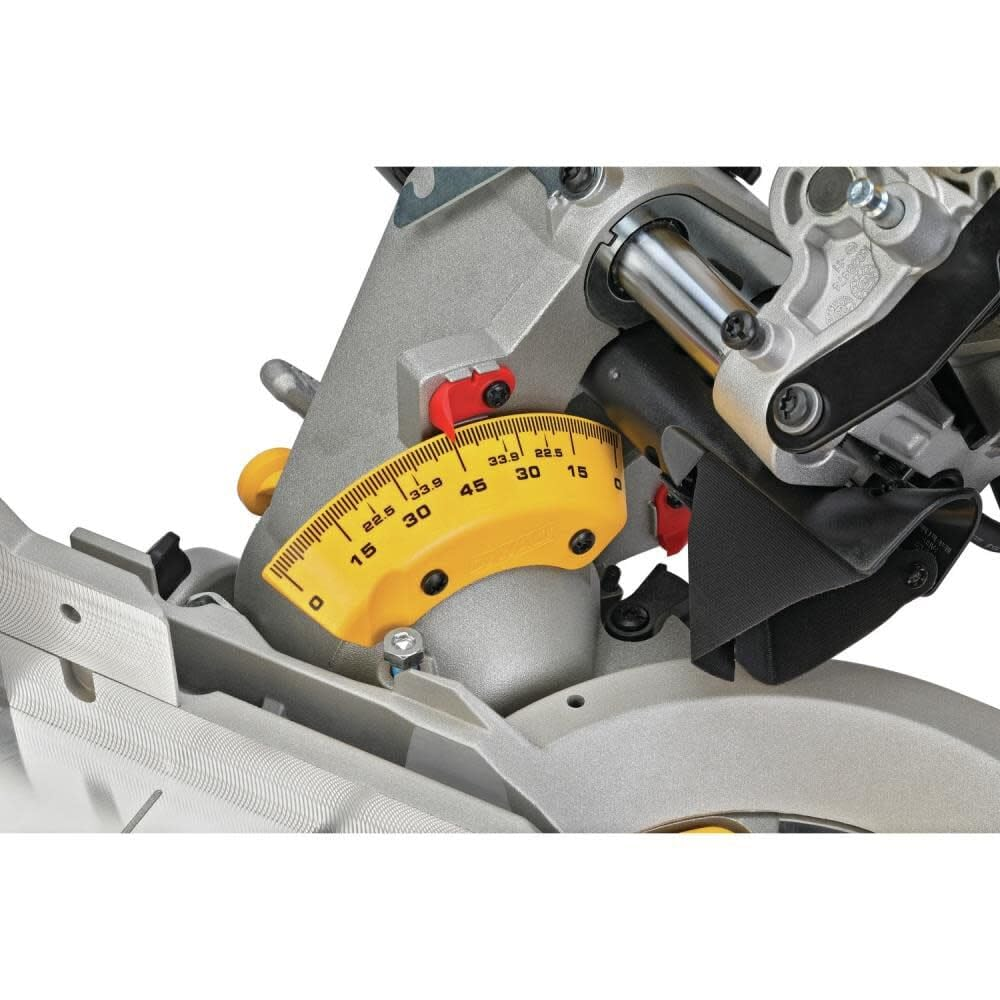

- Oversized bevel scale makes bevel angle adjustments accurate and easy
- Compact, lightweight design (58 lbs.) allows for easy transport and storage
- Cam lock miter handle with detent override deliver quick and accurate miter angles
- Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw
- Innovative gearbox and belt-drive design increases vertical cutting capacity
- Precise miter system and machined base fence support optimize durability and cutting accuracy

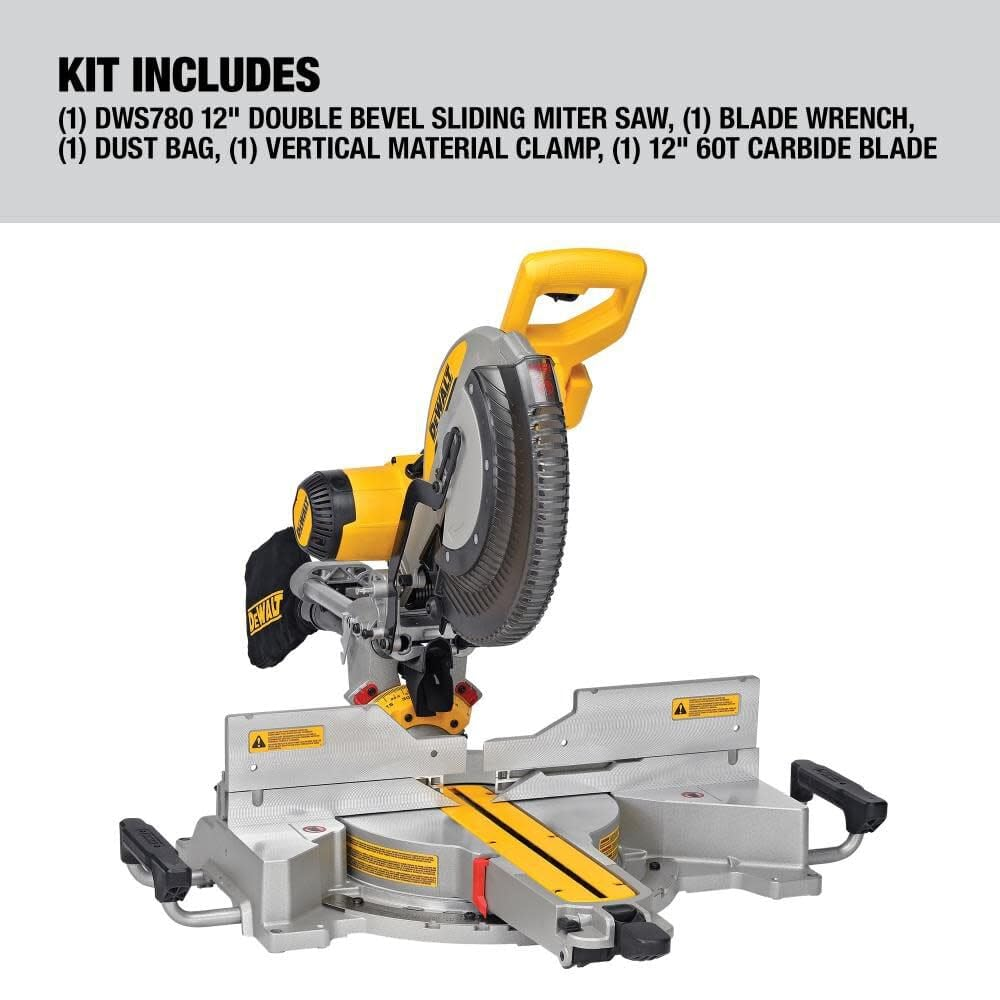

- Dust bag and material clamp included
Dimensions
|
Arbor Size (in.) |
5/8 in |
Blade Diameter (in.) |
12 in |
|---|---|---|---|
|
Product Depth (in.) |
32.33 in |
Product Height (in.) |
19.5 in |
|
Product Width (in.) |
23 in |
Details
|
Amperage (A) |
15 A |
Bevel Type |
Dual Bevel |
|---|---|---|---|
|
Color Family |
Yellow |
Condition |
New |
|
Construction Material |
Composite |
Cord Length (ft.) |
6 ft |
|
Corded Tool Type |
Miter Saw |
Cordless/Corded |
Corded |
|
Cuts Through |
Wood |
Dust Collection Method |
Bag |
|
Included Accessories |
Clamp |
Maximum Bevel Cut Angle - Left (degrees) |
49 ° |
|
Maximum Bevel Cut Angle - Right (degrees) |
49 ° |
Maximum Crosscut Capacity at 45 Degrees (L/R) |
2 in x 10 in |
|
Maximum Crosscut Capacity at 90 Degrees |
2 in x 14 in |
Maximum Cutting Thickness (in.) |
14 in |
|
Maximum Miter Cut Angle - Left (degrees) |
50 ° |
Maximum Miter Cut Angle - Right (degrees) |
60 ° |
|
Maximum Speed (RPM) |
3800 RPM |
Miter Saw Type |
Sliding Compound |
|
Power Source |
Electric |
Power Tool Features |
Keyed Blade Change, Positive Stops |
|
Product Weight (lb.) |
69.9 lb |
Returnable |
90-Day |
|
Tools Product Type |
Power Tool |
